Stopper® Stations Red "EMERGENCY" LED Illuminated Push Button

The Stopper® Stations Red “EMERGENCY” LED Illuminated Push Button is a high-performance safety and control switch designed for reliable activation in critical situations. Built for versatility, durability, and protection against accidental use, this ADA-compliant push button is ideal for a wide range of indoor safety, security, and emergency applications.

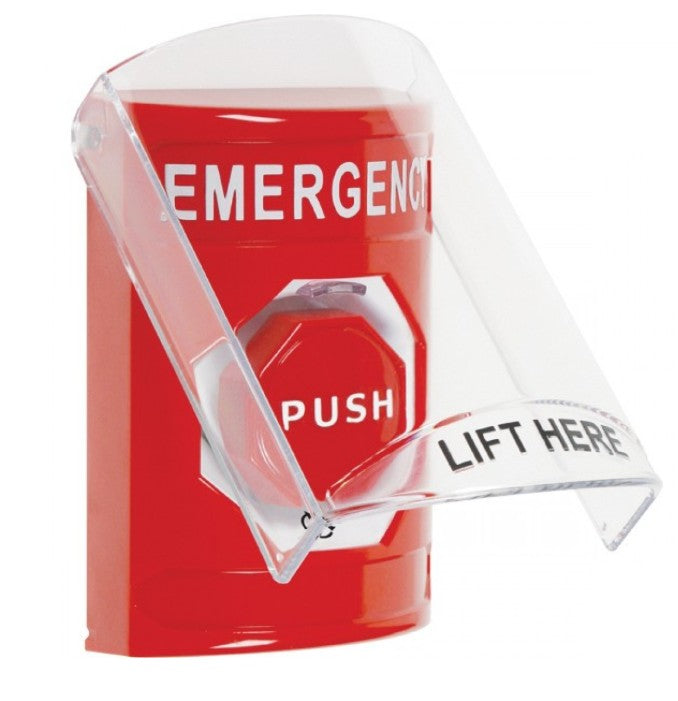

Featuring a bold red housing clearly marked “EMERGENCY” in high-contrast lettering, this unit ensures immediate recognition during urgent situations. The illuminated LED push button enhances visibility and can support various signaling functions depending on system configuration, making it easy to identify and activate when seconds matter.

Engineered with Safety Technology International’s patented Stopper® design, this switch incorporates a clear, impact-resistant protective cover that significantly reduces the risk of accidental activation, vandalism, and unintentional damage. The curved cover design ensures the button is only engaged when intentionally accessed, providing an added layer of operational safety.

Constructed for long-term commercial use, the unit features durable materials and high-quality electrical components, including interchangeable or replaceable gold-plated contact blocks rated for demanding electrical loads. The standard configuration includes both normally open (N.O.) and normally closed (N.C.) contacts, with the capacity to support up to three sets of isolated contacts for flexible system integration.

The switch is equipped with two Form “C” (DPDT) contacts rated at 10 amps at 125/250 VAC, along with additional electrical ratings suitable for a wide range of applications. It also includes a pneumatic adjustable timer with a 2–60 second range (±15%), allowing for delayed activation or reset functionality without requiring electrical power.

Designed primarily for indoor use, the Stopper® Station operates within a temperature range of 15°F to 120°F (-9°C to 49°C). It is engineered for exceptional longevity, with a timer life exceeding 1,000,000 operations, ensuring dependable performance in high-traffic environments.

Key Features:

• Red “EMERGENCY” LED illuminated push button for high visibility
• ADA-compliant design for accessible operation
• Patented protective cover prevents accidental activation and vandalism
• Durable construction for commercial and institutional environments
• Interchangeable gold-plated N.O. / N.C. contact blocks
• Supports up to 3 sets of isolated contacts
• Dual Form “C” DPDT contacts rated 10A at 125/250 VAC
• Pneumatic adjustable timer (2–60 seconds, ±15%)
• No electrical power required for timer operation
• Rated for up to 1,000,000 cycles
• Indoor use (15°F to 120°F operating range)
• Ideal for security and emergency response applications

Reliable, rugged, and engineered for controlled emergency activation, the Stopper® Stations Red “EMERGENCY” Push Button delivers trusted performance when fast and intentional response is critical.
